Brew-by-weight espresso uses beverage-weight feedback to control the shot's endpoint. Traditional volumetric espresso usually uses a flow meter to track water passing through the machine. A timed program stops after an elapsed duration. All three can end a shot automatically, but they measure different things and do not guarantee an identical final weight in the cup.
The difference becomes clearer when you follow the stop signal. What does the machine sense? What does its controller compare? And what can still fall into the cup after the brewing command ends?
Three Ways to Give a Shot an Endpoint
| Control Method | What It Measures | What Triggers the Stop | What to Check in the Cup |
|---|---|---|---|
| Brew by weight, also called gravimetric control | Espresso mass collected on a scale | A weight-based threshold or predictive control decision | Final settled beverage weight |
| Traditional volumetric control | Water passing through a flow meter in the machine's water circuit | The programmed count or calculated water quantity | Actual beverage yield under the current recipe |
| Timed control | Elapsed time | The programmed duration | How much espresso was produced during that time |
| Manual stopping | Whatever the user monitors, such as weight or time | The user's stop command | Final yield and flavor |
These are common operating principles, not a description of every machine sold under each label. Some systems combine measurements or apply software corrections. The manual and selected brewing mode determine what your machine actually does.
Follow the Weight-Based Stop Signal
In a weight-controlled system, the cup rests on a scale and its empty weight is removed through taring. As espresso enters, the scale reports the growing beverage mass.
- You select a target beverage weight.
- The scale measures the espresso arriving in the cup.
- The controller evaluates the weight feedback.
- The machine ends brewing according to its control logic.
- Any remaining drips settle, producing the final beverage weight.
The scale must participate in machine control. A scale that only displays grams helps you stop manually, but it does not turn the machine into an automatic brew-by-weight system.
The same distinction applies to an automatic timer. Some scales start timing when espresso arrives and stop timing when flow ends or the cup is removed. That is timer automation, not necessarily a command to stop the espresso machine.

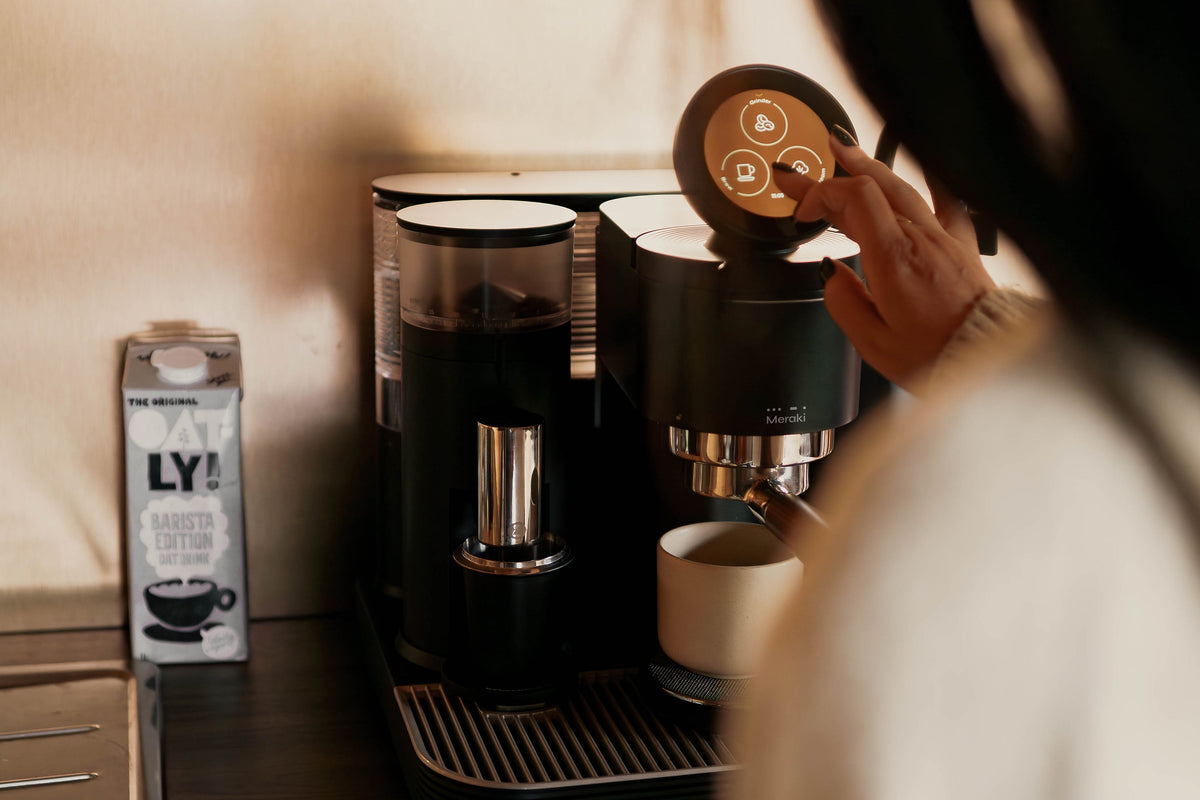

On the Meraki espresso machine, built-in dose and yield scales support a measured recipe, and the weight-based brewing function provides an automatic endpoint. Use the operating instructions for the selected mode rather than treating every screen readout as a separate control function.
This is the practical difference between having a number visible and having scales integrated into espresso brewing.
Follow the Volumetric Stop Signal
Traditional volumetric control measures brewing water within the machine. A common flow meter contains a small rotating component and a sensor that generates pulses as water passes through.
The controller counts those pulses and ends the shot when the programmed quantity is reached. Barista Hustle describes this mechanism in its explanation of flow-meter feedback in automatic espresso machines.
When you program a button by starting and stopping a shot, the machine may save the corresponding flow-meter count. Pressing that button again repeats the metered-water target, rather than directly weighing the beverage.
Metered water is not the same measurement as espresso in the cup. Some water remains with the coffee bed, and the amount reaching the cup depends on the recipe and the machine's hydraulic arrangement. Sensor position, pre-infusion accounting and software behavior vary between models.
Technical descriptions of saved water-volume counts for espresso dosing illustrate this distinction. They describe particular implementations, so they should not be read as a universal specification for every volumetric machine.
Volumetric Control Is Not Watching the Crema
A flow meter does not normally look into the cup or read the graduation marks on a shot glass. It measures water in the circuit.
Crema creates a separate problem when a person estimates espresso yield by visible volume. A shot with more foam occupies more space without a proportional increase in beverage mass.
Therefore, two statements can both be true: a volumetric program can repeat its water target, while two cups show different visible volumes. Weighing the drink helps you separate those observations.
Why a 36 g Target May Finish Above 36 g
The selected target, the reading when the machine issues its stop command, and the final settled weight are three different points in the process.
| Point in the Process | What It Means |
|---|---|
| Target weight | The beverage mass you ask the system to produce. |
| Stop-command reading | The weight reported when the controller decides to end brewing. |
| Final settled weight | The beverage collected after the remaining stream and drips arrive. |
Liquid may already be falling between the portafilter and the cup when the stop command occurs. Scale filtering, communication and machine response can also affect the timing. Further drips may follow as the system ends brewing.
As an illustrative example, if liquid is arriving at 2 g per second, an additional half-second of delivery adds approximately 1 g. That arithmetic explains why response time matters; it is not a prediction of any specific machine's error.
Some systems anticipate the remaining delivery and stop early. Others use a simpler threshold. Do not assume a predictive algorithm is present unless the manufacturer documents it.
Coffee ad Astra's experimental discussion of incoming water flow and outgoing espresso mass also shows why these signals need to be distinguished. The cup contains water plus material extracted from the coffee, and live measurements introduce their own practical limits.
What Happens When You Change the Grind?
A finer or coarser setting changes the resistance of the prepared coffee bed. How that affects the endpoint depends on what the machine holds constant.
With a timed program, the duration remains fixed while beverage weight can change substantially. With volumetric control, the metered-water target remains fixed, while shot time and final beverage weight may change.
With weight-based control, the system works toward the selected beverage mass. The time needed to reach it can still change, and the extraction can still be uneven.
Automatic yield control does not automatically dial in the coffee. A fast, channelled shot can reach the target weight. So can a slow shot that tastes dry or bitter. Neither result becomes balanced simply because the final number is close.
Keep the relationship between espresso dose and beverage yield clear. An 18 g dose and a 36 g beverage describe a 1:2 ratio; they do not tell you whether the coffee tastes good.
Check Your Machine Without Guessing
Read What the Program Actually Saves
Look for terms such as beverage weight, water volume, flow-meter count or extraction time. A button labeled “double” does not identify its stopping mechanism.
Also check whether pre-infusion is included in the displayed time or metered quantity. Different systems account for it differently, so there is no universal rule to apply.
Measure Several Normal Shots
Keep the beans, basket, dose, preparation and program unchanged. Record shot time and final beverage weight across several drinks. Use the same point for ending the measurement each time.
This checks the repeatability of your current routine. It does not identify the mechanism conclusively: stable results can come from more than one control method.
If you want to monitor output manually, a stable weighing surface and appropriate cup clearance matter more than adding unnecessary tools. Check the dimensions of compatible espresso accessories before changing the setup around the group head.
Keep the Scale Mechanically Free
For weight feedback to be useful, the cup must be supported by the scale rather than partly touching the machine or another object. Follow the specified load limit, taring procedure and cleaning instructions.
Do not stack an external scale on an integrated weighing platform unless the manufacturer supports that arrangement. It can alter clearance, loading and the measurement setup you are trying to assess.
Which Method Fits a Home Recipe?
Weight-based control is convenient when you express recipes as grams in and grams out. It connects the automatic endpoint directly to the beverage measurement you use for brew ratio.
Volumetric control can also support a repeatable routine. Establish the recipe using a scale, program the button according to the manual, and check the cup again when you change coffee, dose or other important variables.
Timed control remains usable, but you need to watch yield as the coffee and grind behavior change. Keeping the same duration does not hold the amount of espresso constant.
If you are choosing between home espresso machines and accessories, check the actual stopping method instead of relying on “automatic” or “programmable” alone. Those descriptions can refer to different functions.
Whichever system you use, choose an espresso yield that suits your recipe, verify the final result and taste the coffee. The stopping mechanism helps repeat an endpoint; you still decide whether that endpoint produces the cup you want.
